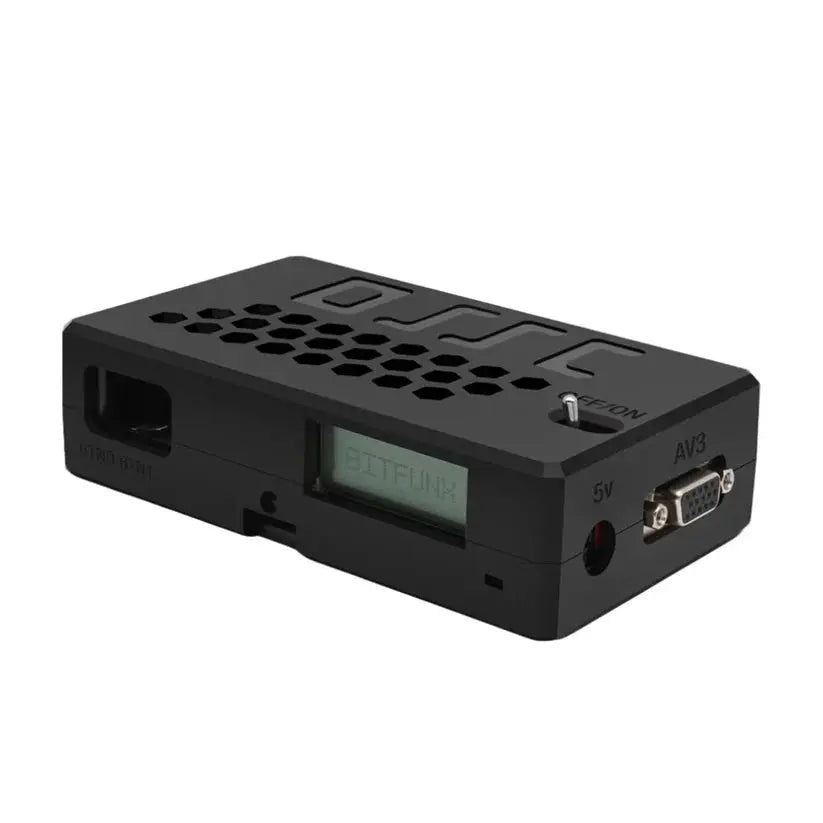

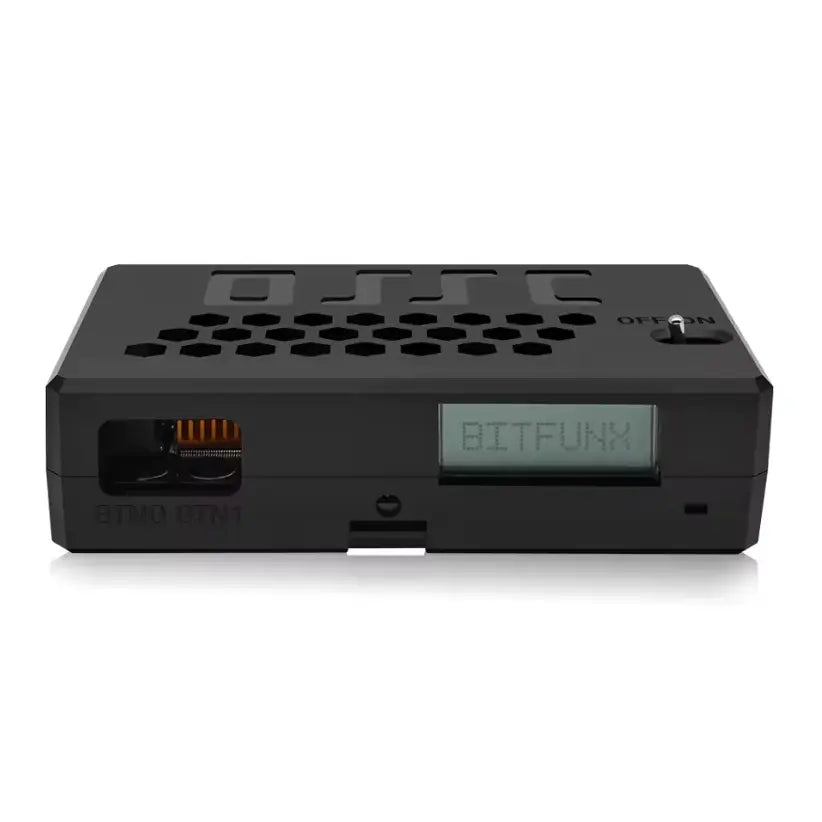

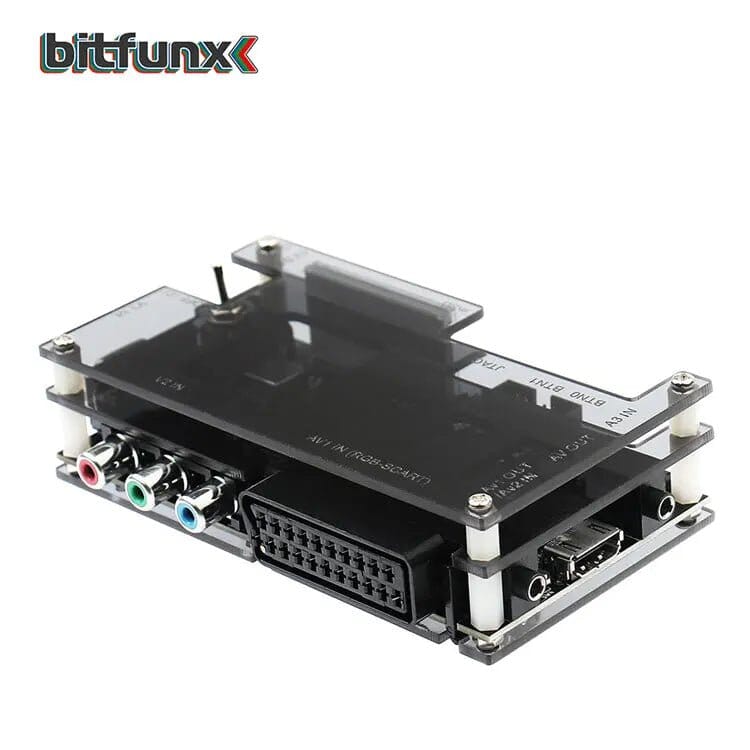

OSSC Open Source Scan Converter V1.8 HDMI - BITFUNX

The Ultimate Retro Gaming Upscaler for Modern Displays

Transform your classic console collection into a stunning, lag-free experience on any HDMI display. The Bitfunk OSSC is a high-quality line multiplier that converts analog video signals to digital HDMI with zero added latency, preserving the authentic feel of retro gaming while delivering crystal-clear visuals.

🔌 Universal Compatibility

Connect virtually any classic system:

Sony: PS one, PlayStation 1, PlayStation 2

Nintendo: NES (PAL), SNES/Super Famicom (PAL)

Sega: Genesis/Mega Drive (Model 1 & 2), Saturn, Dreamcast

Microsoft: Original Xbox (Classic)

Others: Neo Geo, PC Engine/TurboGrafx-16

Plus: Any system with RGB, Component (YPbPr), or VGA output.

🎮 Key Features & Special Modes

Zero-Latency Processing: Game with no perceptible delay—critical for rhythm and action titles.

Multiple Scaling Options: Choose from passthrough or line multiplication (2x, 3x, 4x, 5x, 6x) for optimal image sizing.

Authentic CRT Simulation:

Scanline Generator: Recreates the classic scanline look of vintage televisions.

Shadow Mask Effect: Adds an even more authentic CRT phosphor grid pattern for a true retro aesthetic.

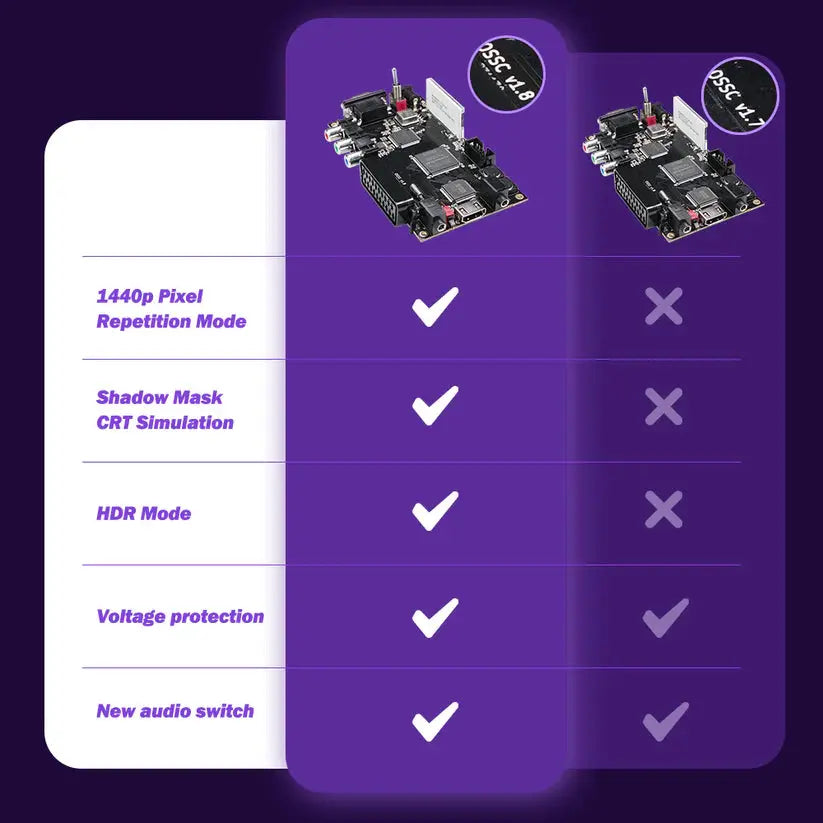

Enhanced Clarity Mode: 1440p pixel-repetition mode for a sharper, cleaner image on high-resolution displays.

Vivid HDR Mode: Expands color gamut and contrast for richer, more lifelike visuals on supported displays.

Future-Proof: Update the device's firmware easily via microSD card to access new features and improvements.

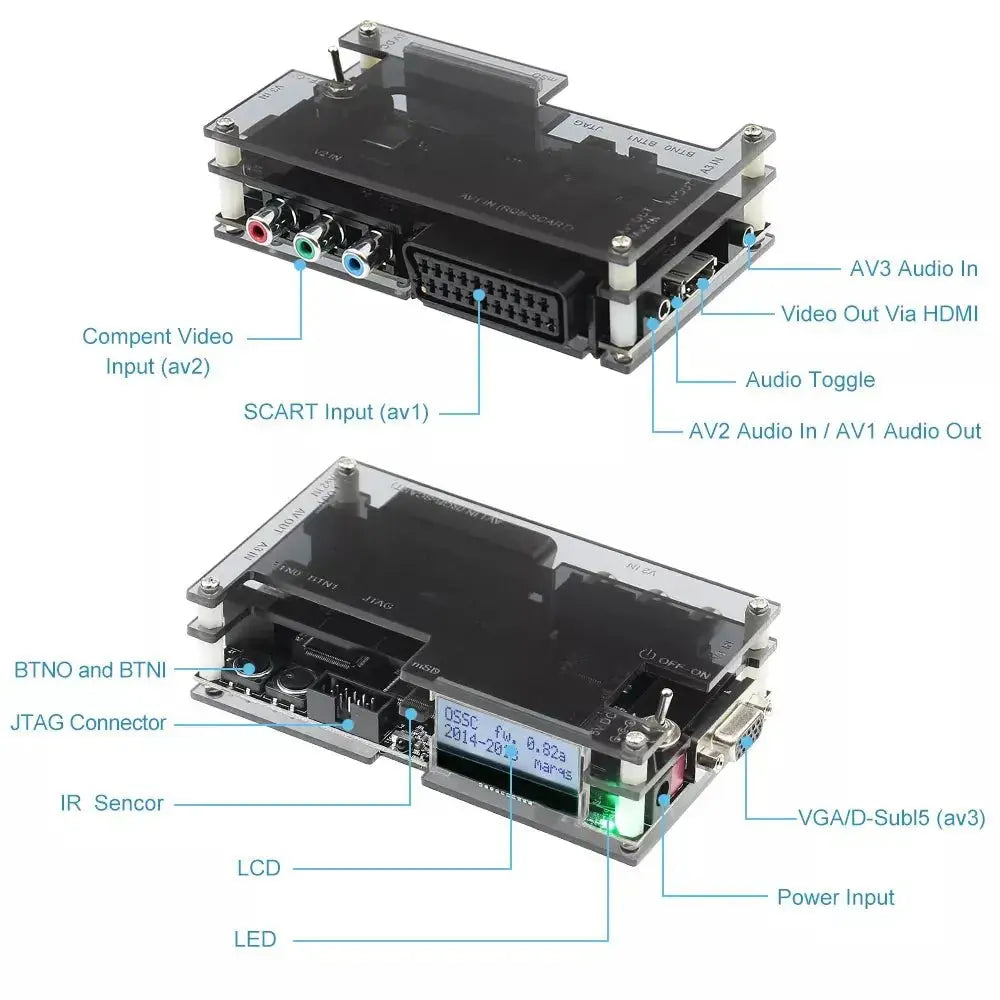

📥 Inputs & Output

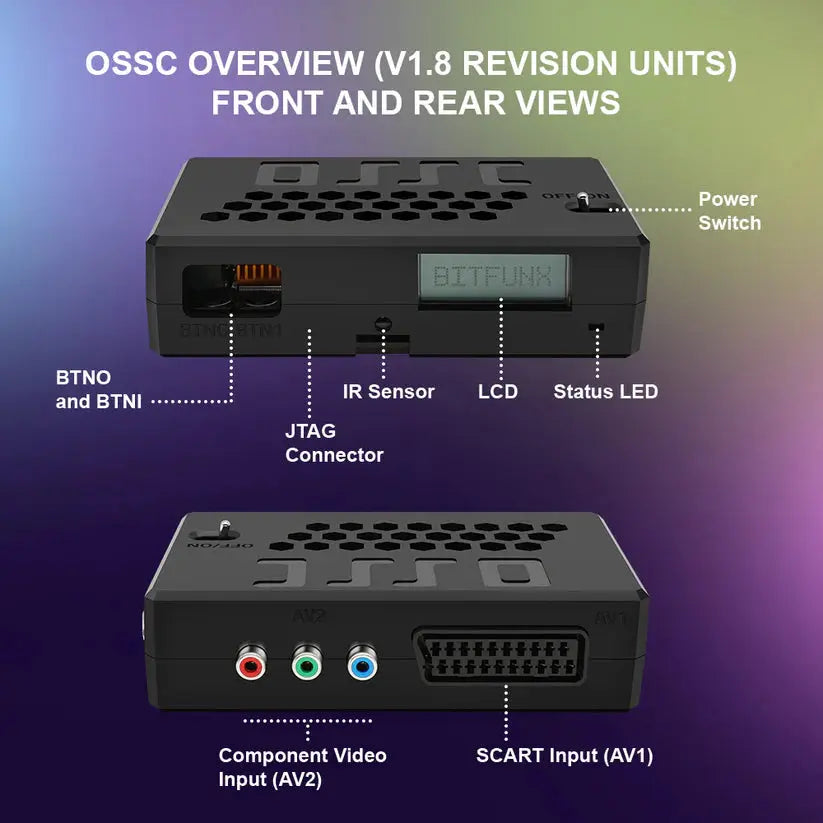

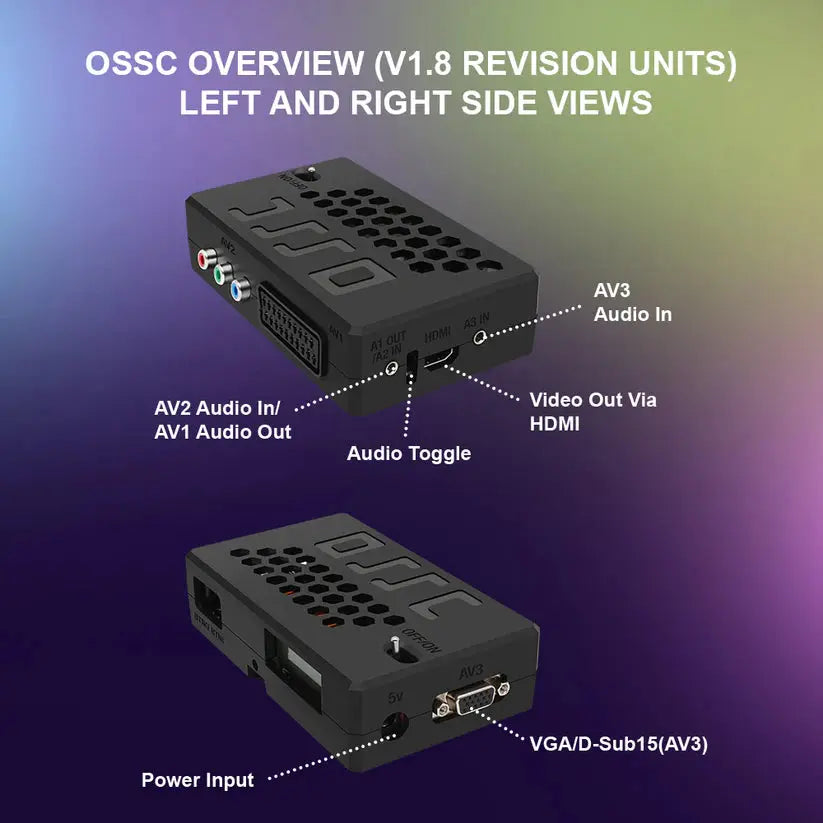

Inputs: RGBS (via SCART), Component (YPbPr), VGA

Output: HDMI (up to 1080p / 1440p depending on mode)

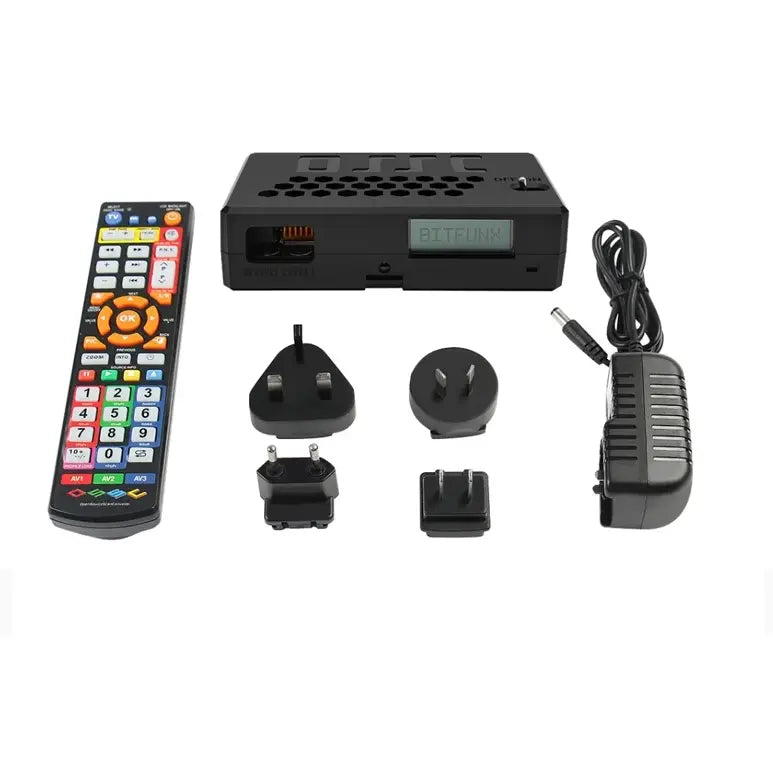

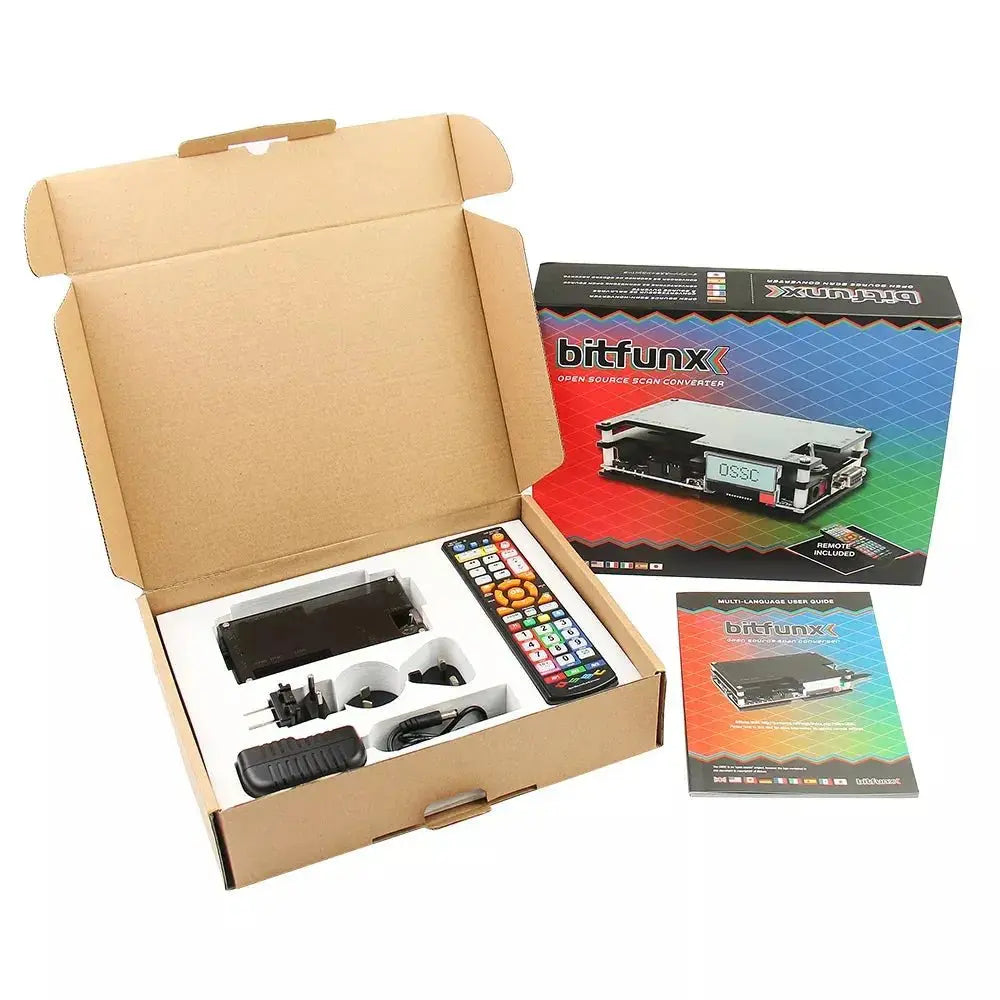

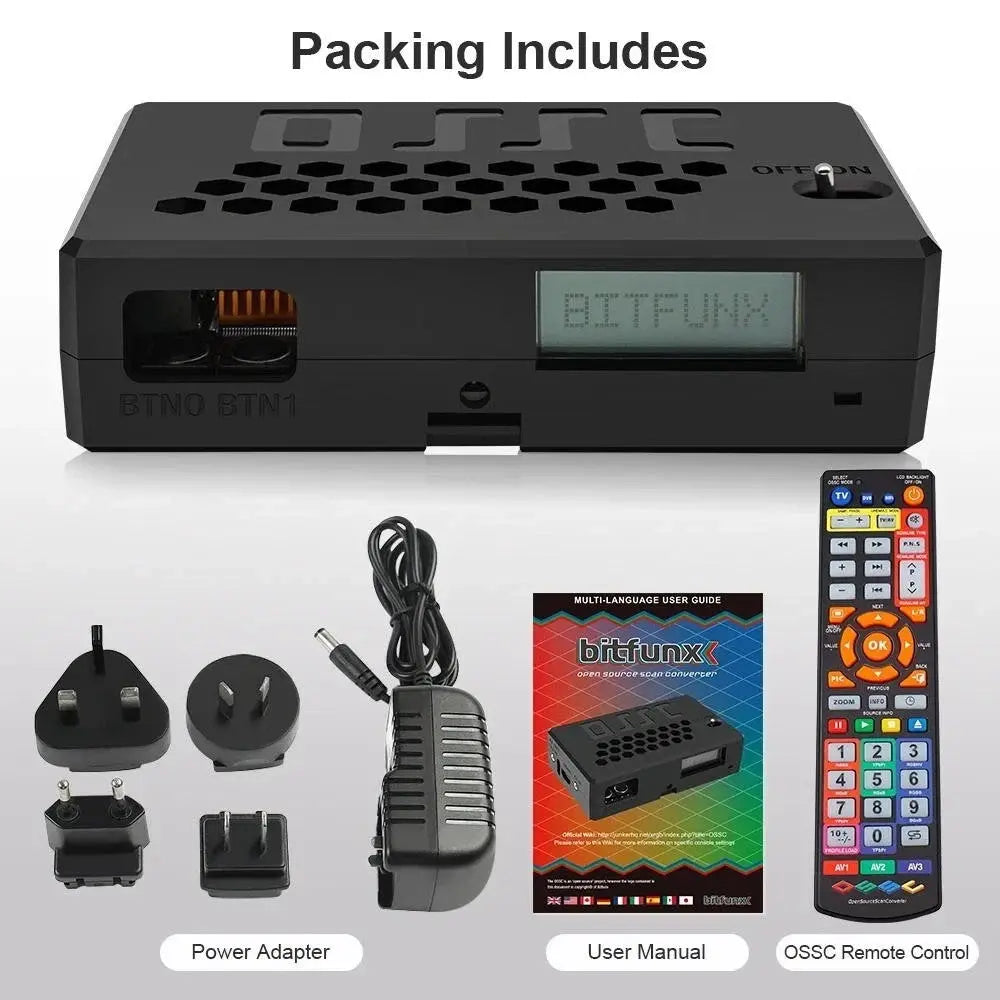

📦 What's in the Box

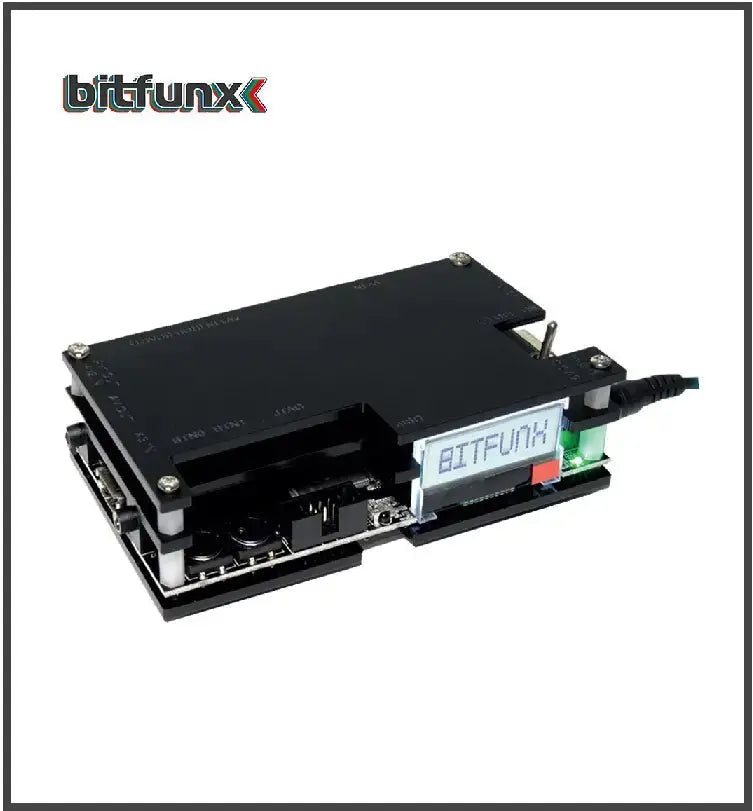

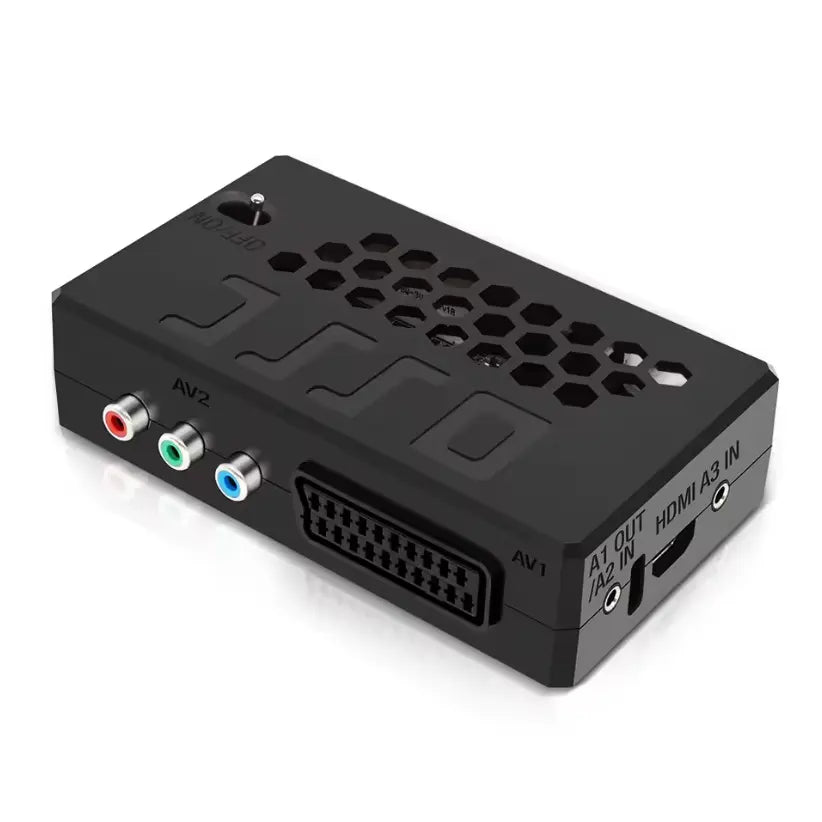

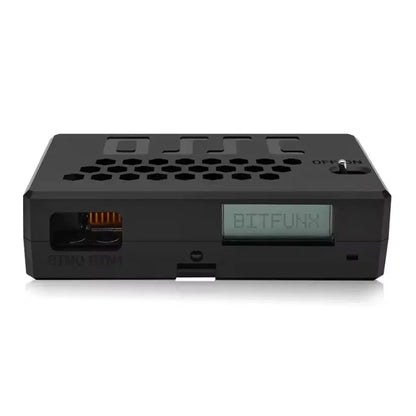

1x Bitfunk OSSC Unit (Hardware Version 1.8)

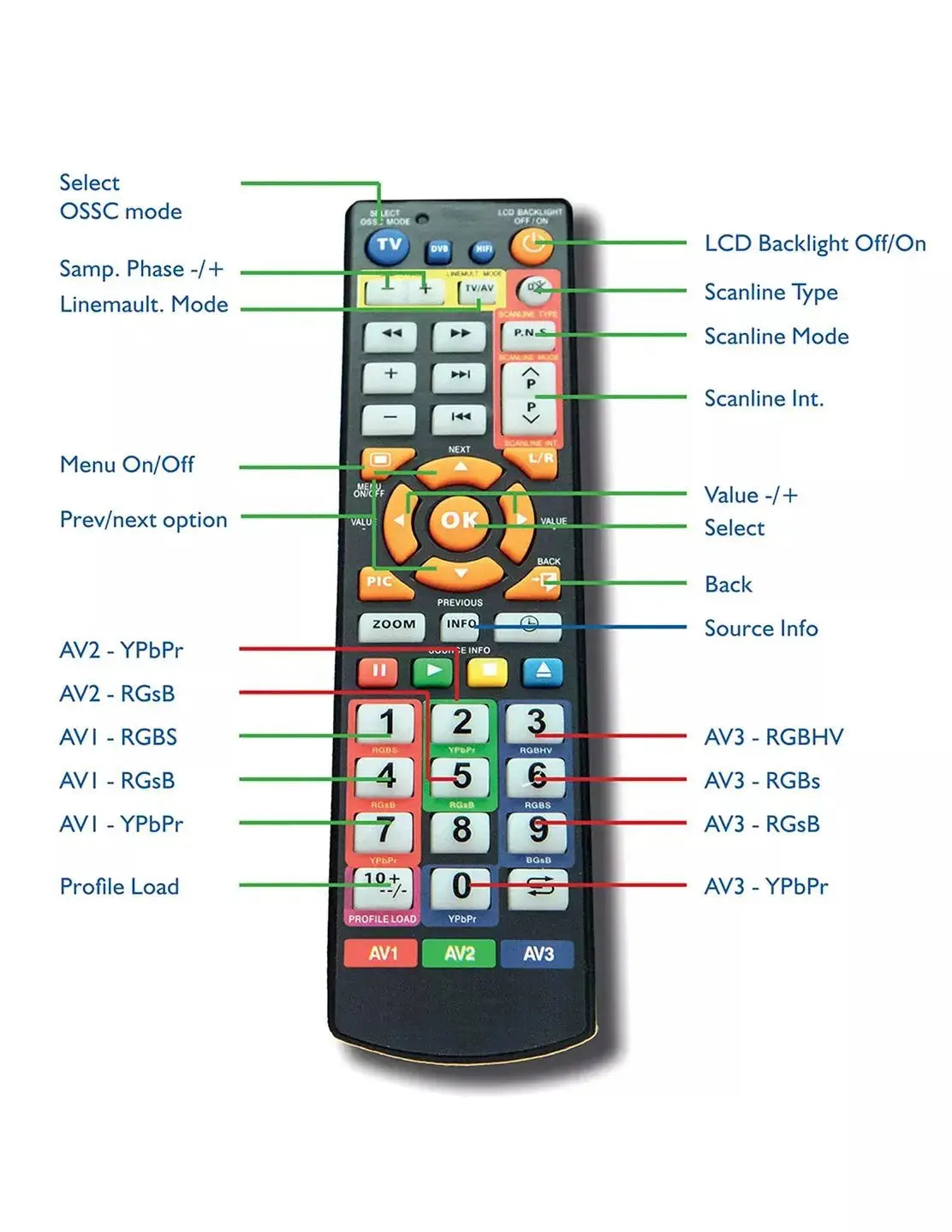

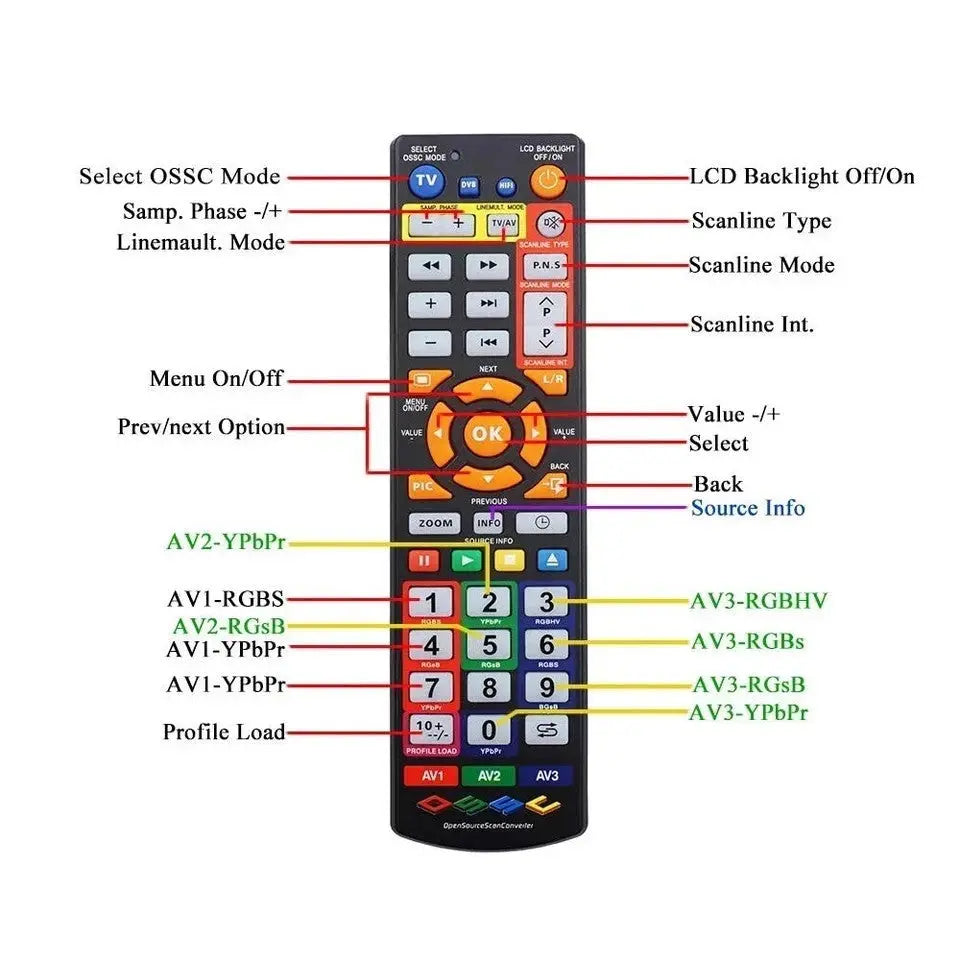

1x Infrared Remote Control

1x 5V/2A Power Adapter (SV 2A)

4x Interchangeable Plug Heads: EU, US, UK, AU

1x User Manual

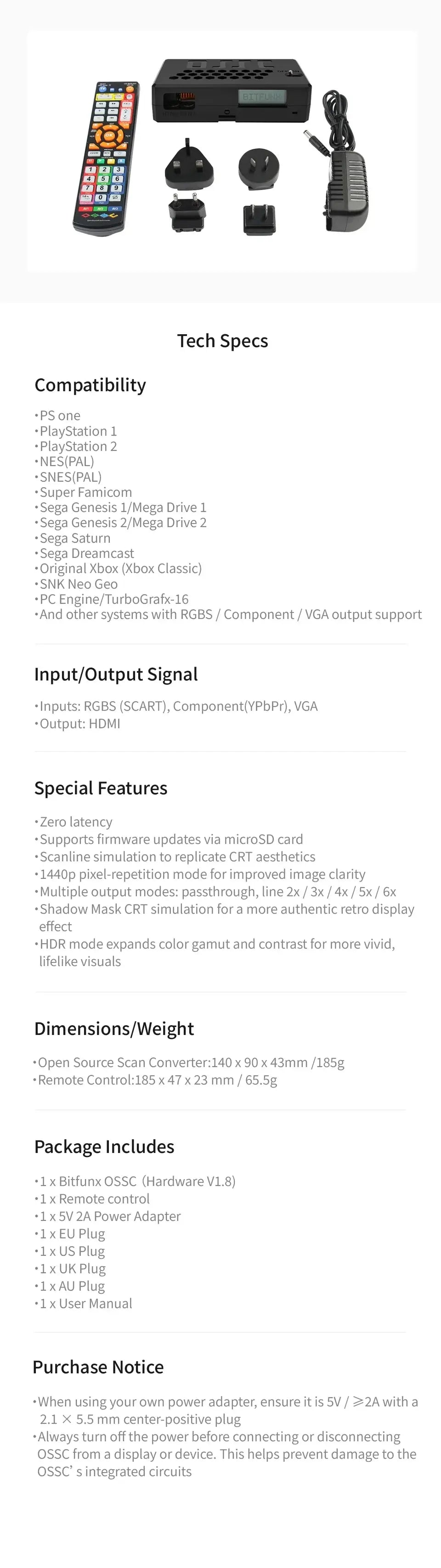

⚙️ Tech Specs & Notes

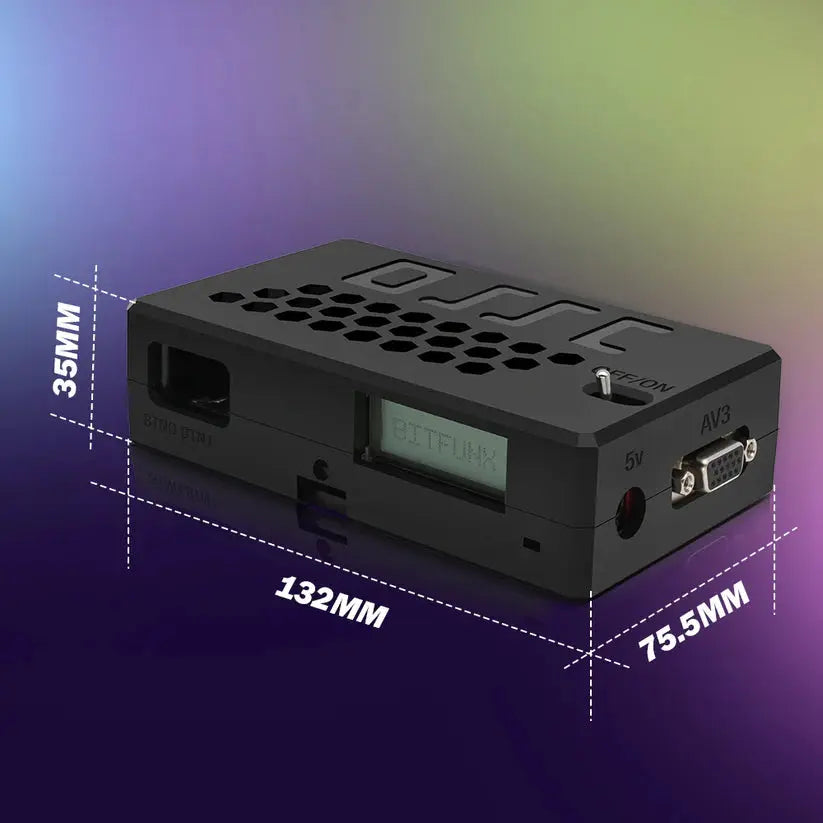

OSSC Dimensions: 140 x 90 x 43 mm

OSSC Weight: 185g

Remote Dimensions: 185 x 47 x 23 mm

Remote Weight: 65.5g

⚠️ Important Usage Notice:

If using your own power supply, it must be 5V, 2A (or greater) with a 2.1×5.5mm center-positive plug.

Always power off the OSSC before connecting or disconnecting it from your console or TV to prevent potential circuit damage.

✨ Why Choose the Bitfunk OSSC?

Whether you're a retro gaming enthusiast, a speedrunner, or a collector, the OSSC is the professional's choice for video conversion. It delivers unparalleled picture quality without compromising the responsive gameplay you remember. Breathe new life into your classic games with the perfect blend of modern convenience and nostalgic authenticity.

Ready to upgrade your retro setup? Add to Cart Today!
